The world's most capable bending systems

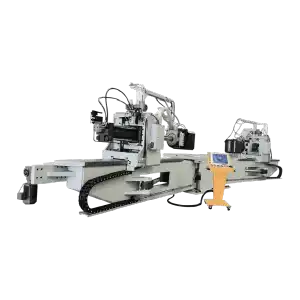

STRETCH FORMING MACHINE

  • Precision Control
  • Robust Clamping System
  • Advanced PLC
  • Easy Maintenance

The Inductaflex Stretch Forming Machine is purpose-built for high-volume production environments—delivering maximum throughput, ultra-low dimensional deviation, and minimal material waste. With advanced automation and built-in safety systems, it ensures reliable, scalable, and efficient forming processes.

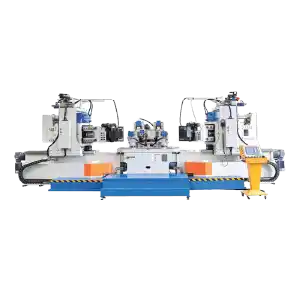

Widely adopted in the automotive sector and at the forefront of electric vehicle (EV) manufacturing, our stretch former is revolutionizing the way body structures, chassis components, and battery enclosures are made. It enables lightweighting, structural integrity, and design flexibility—key to meeting the evolving demands of EV innovation, safety, and performance.

STRETCH FORMING MACHINE

  • The World’s most desired new entrant to the market
  • Bend from hundreds to hundreds of thousands of parts per year.
  • World leading stretch bending control software to produce the best formed parts.
  • Used by most of the World’s leading automotive brands
Specs
  • Robot loading of parts
  • Robot saw function to cut the lead material to length
  • Additional safety scanners
  • Integrate and adapt with existing system or/and machining cell
  • Support tables for large parts
  • Z axis for asymmetric profiles
  • Profile design consultation
  • Tool design
  • Bespoke functions
Optional extras
  • Robot loading of parts
  • Robot saw function to cut the lead material to length
  • Complete bend cell set up
  • Additional safety scanners
  • Link to an existing machining cell (Integrate and adapt with existing system or/and machining cell)
  • Support tables for large parts
  • Z axis for asymmetric profiles

Besides, We are capable to consult more bending solution, tools and add more functions to software as per requirements

Dimension
68” long x 51” wide (1727 x 1295) See downloadable pdf / dxf
Installation and commissioning
The machine should be connected to a 480V, 3-phase, 60Hz power supply via a 32A wall-mounted isolator. Additionally, a compressed air supply of 3 to 5 bar is required.

We highly recommend the machine installed and commissioned under consultancy and supervision of Inductaflex engineers. We offer installation & commissioning , maintenance service to secure specification and operation of machine.

Shipping
We are willing to handle the shipment in accordance with the requested term under Incoterms 2020
Warranty

The warranty period for goods is within 3 years from the date of BL/AWB for any broken, damages, defects be caused to the Goods by quality of Goods and for reason attributable to the Seller.

In case the Goods need to be repaired / replaced within the warranty period, the execution time shall be the minimum reasonable required time from the Buyer and Seller’s agreed date.

The Seller shall be relieved of its obligations under this Warranty to the extent that:
– The Buyer has modified the machines. The damage to the Goods has occurred during transit, or is due to improper storage, unloading, handling or operation by the Buyer
– The Buyer has failed to handle, install, operate and maintain the Goods strictly in accordance with the instruction manual of Seller.
– Wear and Tear parts are excluded from warranty.

In the case of a turnkey project, warranty will commence once the installation is completed.

EXCLUSIVE SERVICES WITH LIMITED OFFERS

MAINTENANCE

1. Software updates
2. Spare parts supply
3. Performance optimization

TRAINING

1. On-site – Customer
2. Advanced Technical Training &
3. Video Training

TECHNICAL SUPPORTS

1. Technical support for troubleshooting and service
2. Spare guide for repairs and adjustment.

INSTALLATION & SET UP

1. On-site Machine installation for indications.
2. On-site Supervision & Consultancy.

TOOLING DESIGN & SUPPLY

1. Custom Tool Design, Plans, and
2. Tool Manufacturing.

TECHNICAL CONSULTATION

1. Expert testing and evaluation for challenging cases.
2. On-site machine customization and solutions for specific requirements.

EXAMPLE BENDS

CMM scanning stretch formed part_11zon
bend check jig for automotive bend_11zon
stretched-formed-crash-bumper-scaled (1) (1)_11zon_11zon
stretch formed car bumpers_11zon

Stretch Former RANGE

2D 200kN-4500
Stretching Power
200kN
Max Distance between Jaws
4500mm
Mould Platform Height
925mm
Mould Platform Dimensions
1830 x 1270mm
Stretch Cylinder Swing Angle
±30°
Swing Arm Angle
10° Forward, 90° Backward
Swing Arm Precision
±0.1°
Servo Power
31kW
Weight
12T
2D 350kN-5200
Stretching Power
350kN
Max Distance between Jaws
5200mm
Mould Platform Height
970mm
Mould Platform Dimensions
2050 x 1280mm
Stretch Cylinder Swing Angle
±30°
Swing Arm Angle
10° Forward, 90° Backward
Swing Arm Precision
±0.1°
Servo Power
37kW
Weight
16.1T
2D 550kN-6500
Stretching Power
550kN
Max Distance between Jaws
6500mm
Mould Platform Height
980mm
Mould Platform Dimensions
2360 x 1285mm
Stretch Cylinder Swing Angle
±30°
Swing Arm Angle
10° Forward, 90° Backward
Swing Arm Precision
±0.1°
Servo Power
43kW
Weight
19T
2D 1200kN-6500
Stretching Power
1200kN
Max Distance between Jaws
6500mm
Mould Platform Height
1050mm
Mould Platform Dimensions
2500 x 1350mm
Stretch Cylinder Swing Angle
±30°
Swing Arm Angle
10° Forward, 90° Backward
Swing Arm Precision
±0.1°
Servo Power
70kW
Weight
35T
