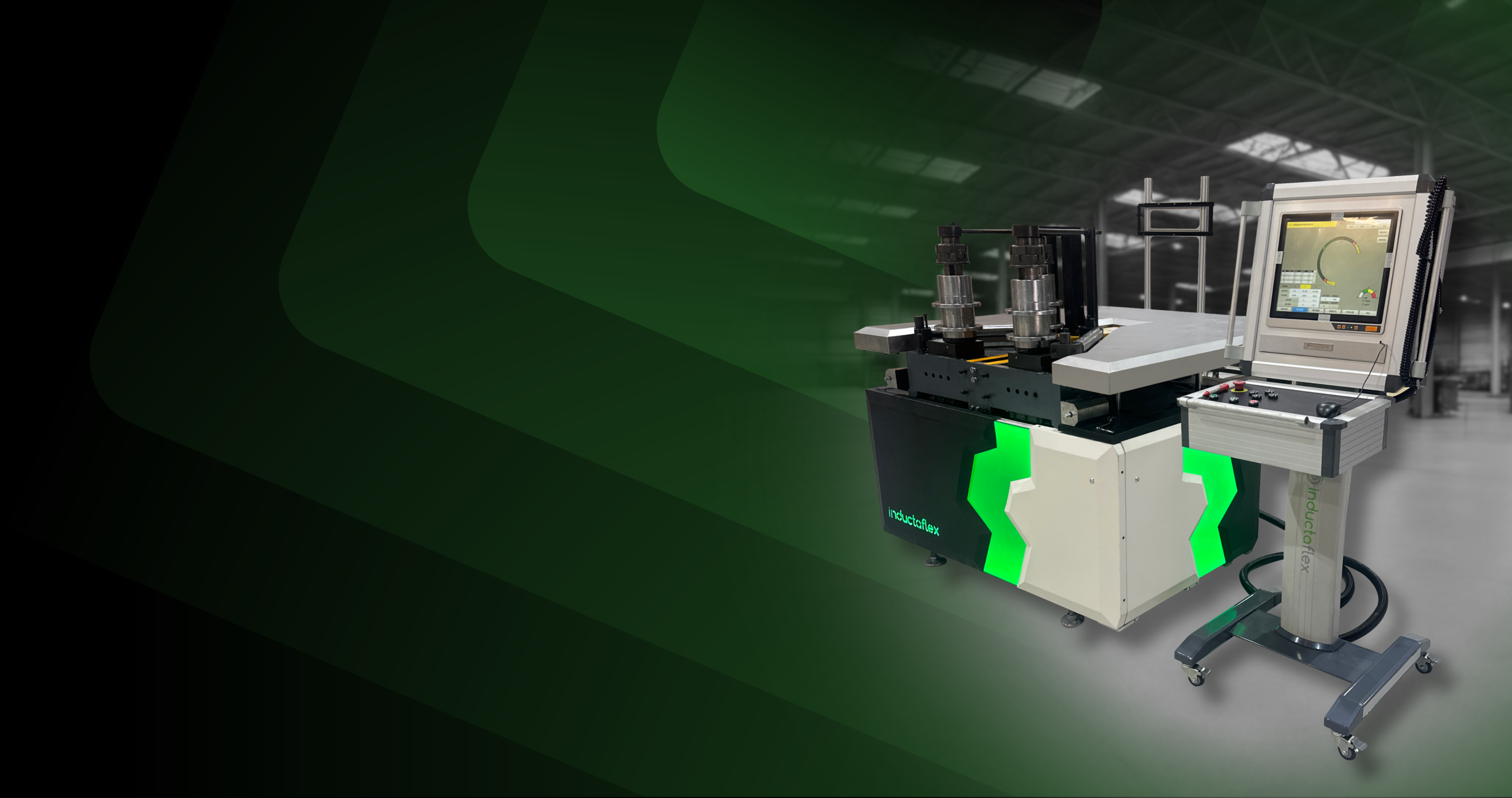

ALUMINUM EXTRUSION ROLLER BENDING MACHINE

  •  Variable shaft centres give the widest bend range possible. (Essential for aluminium extrusions)
  • Re-bending software re-forms the profile automatically when the actual radius is entered. Zero waste possible!
  • Complex bend shapes made easy including ‘S’ bend shapes.
  • Simple CNC operation mastered in 1 day

Inductaflex’s AL-Series of aluminium extrusion roller benders—including the AL-15, AL-25, AL-40, and AL-70 models—deliver exceptional precision and versatility in aluminium profile bending. Specifically designed to handle a wide range of aluminium profiles, these machines produce flawless curves with minimal distortion. As a result, they meet the demands of various industries, including curtain wall systems, window frames, LED light bodies, automotive components, and aerospace-formed aluminium parts. Furthermore, the AL-Series enables manufacturers to achieve consistent, high-quality bends across even the most complex shapes.

Download Brochure

ALUMINIUM EXTRUSION ROLLER BENDING MACHINE

  • 1/4″ – 36″ high profiles, 6mm – 914mm
  • Rebending of parts Bending software is simple to use
  • Servo Electric / Hybrid
  • CAD Drawing Upload, dxf nd 3D files.
Compare
Specs
  • Power: 12T, 15T, 25T, 40T, 70T models available, larger up to 300 tonne available.
  • Repositioning accuracy: 0.01mm
  • Resolution: 1-20r.p.m
  • Shaft Diameters: 12T – 50mm, 15T – 80mm, 25T – 105mm, 40T – 105mm, 70t – 150mm
  • Shaft length: 200 – 1200mm
  • Torque: 1460N.m – 30,000 N.m
  • Top roller(Y axis) stroke: 200 – 1000mm
  • Hydraulic drive: 2.2kW – 75kW
  • Motor drive: 4kW – 75kW
  • Approx. weight: 3300 Ibs – 50,000lbs
  • Interface: All machines supplied with the most advanced software for bending available.
Optional extras
  • Mandrel with booster to bend square tubes shapes without filling.
  • Robot loading and stacking
  • Automatic bend adjustment (closed circuit)
  • Robot saw for bending
  • Safety cell
  • 4th roller – manual or servo controlled
  • Bend to the end of the bar option
Installation and commissioning

The machine should be connected to a 400, 420 or 480V, 3-phase, 50/ 60Hz power supply form a wall mounted or cable drop with an issolator.

Continuous compressed air supply of 3 to 5 bar is required for the encoder deployment.  Some automation accesories require additional air supply, this will be noted on the shop drawing.

We highly recommend the machine installed and commissioned under consultancy and supervision of Inductaflex engineers. We offer turnkey installation & commissioning, maintenance service to secure specification and operation of machine

Shipping

We are willing to handle the shipment in accordance with the requested term under Incoterms 2020

Warranty

The warranty period for goods is within 3 years from the date of BL/AWB for any broken, damages, defects be caused to the Goods by quality of Goods and for reason attributable to the Seller.

In case the Goods need to be repaired / replaced within the warranty period, the execution time shall be the minimum reasonable required time from the Buyer and Seller’s agreed date.

The Seller shall be relieved of its obligations under this Warranty to the extent that:
– The Buyer has modified the machines. The damage to the Goods has occurred during transit, or is due to improper storage, unloading, handling or operation by the Buyer
– The Buyer has failed to handle, install, operate and maintain the Goods strictly in accordance with the instruction manual of Seller.
– Wear and Tear parts are excluded from warranty.

In the case of a turnkey project, warranty will commence once the installation is completed.

STANDARD FEATURES

world leading bend software
world leading bend software
automatic deployment
automatic deployment
Measuring sensor
Measuring sensor

EXCLUSIVE SERVICES WITH LIMITED OFFERS

Get Offer now

MAINTENANCE

1. Software updates
2. Spare parts supply
3. Performance optimization

TRAINING

1. On-site – Customer
2. Advanced Technical Training &
3. Video Training

TECHNICAL SUPPORTS

1. Technical support for troubleshooting and service
2. Spare guide for repairs and adjustment.

INSTALLATION & SET UP

1. On-site Machine installation for indications.
2. On-site Supervision & Consultancy.

TOOLING DESIGN & SUPPLY

1. Custom Tool Design, Plans, and
2. Tool Manufacturing.

TECHNICAL CONSULTATION

1. Expert testing and evaluation for challenging cases.
2. On-site machine customization and solutions for specific requirements.

EXAMPLE BENDS

exhibition graphics extrusion bending machine
led light extrusion bend
unitised curtainwall bending machine
curved curtain wall transom bending machine

INDUCTAFLEX ROLLER BENDING MACHINE INFORMATION



AL-12 V AL-15 AL-25 H AL-40 H L-70 H
2D/3D versions 2D and 3D 2D and 3D 2D and 3D 2D and 3D 2D and 3D

X-axis
Bending force X-axis 12T 15T 25T 40T 70T
Drive X-axis Hybrid, servo hydraulic clean, low noise 70% energy savings Hybrid servo hydraulic clean, low noise 70% energy savings Hybrid servo hydraulic clean, low noise 70% energy savings Hybrid, servo hydraulic, clean. low noise 70% energy savings Hybrid servo hydraulic clean low noise 70% energy savings
Stroke of Z/U-axis 100mm 150mm 200mm 250mm 400mm
Maximum part width 60 80 180 225 350
Positioning accuracy of the X-axis 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm

Y-axis
3 individual driven rollers speed 1-20 rpm 1-14 rpm 1-14 rpm 1-10 rpm 1-10 rpm
Front shaft distance (roller spacing) 180 390mm 258-518mm 362-762mm 410-1510mm 800-1600mm
Shaft diameter 50mm 80mm 105mm 105mm 130mm
Shaft height 180mm 250mm 330mm 450mm 700mm
Total torque 1700Nm 2470Nm 4847Nm 7500Nm 45000Nm
Max Torque per shaft 850Nm 823Nm 1615Nm 3500Nm 11000Nm
Y axis travel distance 165mm 255mm 400mm 500mm 650mm
Hydraulic drive 2.2kw 3.7kw 5.5kW 5.5kw 5.5kW
Shaft drive: individually drivent Servo electric clean lownaise 70% energy savings Servo electric clean, lownoise 70% energy savings Servo electric clean lownoise 70% energy savings Hybrid servo hydraulic clean, low noise 70% energy saving Hybrid servo hydraulic, clean, low noise 70% energy saving
Shaft supports Standard Standard Standard Standard Standard optional servo close

Z-axis
Z-axis Manual standard roller Manual standard roller Manual standard roller Standard powered Standard powered
Z axis powered option Electric 1000 kg Electric 2000 kg Electric 4000 kg Electric 5000 kg Electric 7000 kg

Control / Software:
Machine control Inteligent CNC, reverse bending Inteligent CNC reverse bending Inteligent CNC reverse bending Inteligent CNC reverse bending Inteligent CNC reverse bending
Operating system Windows Windows Windows Windows Windows

General technical data
KW 2.4kw 3kw 4.4kw 4.7kw 12.3kW
Power supply connection ALL 3 phase, 380, 400, 420 or 480 options, 50/60Hz    17Amps ALL 3 phase, 380, 400, 420 or 480 options, 50/60Hz.       24 Amps ALL 3 phase, 380, 400, 420 or 480 options, 50/60Hz.       32 Amps ALL 3 phase, 380, 400, 420 or 480 options, 50/60Hz.       42 Amps ALL 3 phase, 380, 400, 420 or 480 options, 50/60Hz.       50 Amps
Length/width/height 1731x674x1670mm 1249x1134x1432mm 2037x1300x2148mm 2170x2075x1800mm 2520x2475x214Bmm
Weight 1200kg   2500lbs 1800kg.  3960 lbs 2600kg.   5720 lbs 3000kg. 6600 lbs 7000kg. 15400 lbs
Transportability of the machine Pallet truck Pallet truck Fork truck Fork truck Crane
Hydraulic oil volume 60L 100L 180L 240L 320L

Bending capacity
Maximum profile size

2 1/2″ x 2 1/2″ x 1/8″.

60 x 60 x  3mm

3 1/2″ x 3 1/2″ x 1/8″.

80 x80x 3mm

5″ x 5″ x 3/16″.

125 x 125 x 5 mm

7″ x 7″ x 3/16″

180 x180 x 5mm

10″ x 10″ x 1/4″

250 x 250 x 6mm
Minimum radius (non mandrel) Width on plan x 10 standard Width on plan x 10 standard Width on plan x 10 standard Width on plan x 10 standard Width on plan x 10 standard

FAQs

Common Questions About the Aluminium Extrusion Roller Bending Machine. Contact us with any questions that you may have, or review some of the commonly asked questions that our sales team receives below:

Why is this machine better that others?

Our machine has the most advanced software in the world for aluminum profiles. Moreover, this—coupled with the variable shaft centres that allow bending with wide centres—makes the machine the most suitable on the market.

What industries is this machine best suited for?

Aluminium Extrusion Roller Bending Machine is ideal for forming complex aluminium frames used in:

  • Guitar-shaped case frames
  • Railway carriage connectors (bellows)
  • Architectural features and sculptural profiles
How large of a profile can the machine bend?

We can bend profiles from 1/4 inch high up to 36 inches tall shapes, and widths ranging from 1/4 inch up to 20 inches.

How does the machine ensure bend uniformity?
It includes bar pre-stress rollers that apply controlled force before the main bend, reducing deformation and improving consistency across complex shapes.
Can it handle asymmetrical or thin-wall profiles?
Yes. The machine is designed for high-precision handling of both asymmetric profiles and lightweight extrusions, making it a great fit for aluminum case and enclosure manufacturers.
Is the machine suitable for use in automated production lines?
Absolutely. Its single-pass, bi-directional bending and compact footprint make it perfect for robotic loading and integrated manufacturing cells.
What kind of training and support is offered in the U.S.?
We provide remote setup assistance, U.S.-based service support, and video training. Custom training packages are also available for in-house teams.
How is the bending program handled?
The machine can operate in both manual and automatic modes. There are two programming methods available:

  • Manual input of curve parameters (such as radius, length, angle, and speed)
  • Automatic programming by uploading a .dxf file via a USB port, which the machine processes into a bend sequence.

The bending program is user-friendly and does not require skilled operators. Most users can become proficient in programming curves within just a few hours of training.

How is machine maintenance handled?
The machine is built with a robust design, featuring a rigid frame and high-quality, reliable components from well-known brands. It is engineered for long-term operation with minimal need for repairs or overhauls.

Additionally, the control software includes a built-in maintenance management feature that allows users to schedule, track, and log maintenance activities easily, helping to ensure consistent performance and longevity.

What is Inductaflex’s after-sales service?
Inductaflex offers a 3-year warranty on all machines. For full details, please refer to the warranty terms provided on this page.

Customers are welcome to contact us at for any concerns or support requests — we are committed to responding within 24 hours.

Additionally, to extend the machine’s service life and ensure optimal performance, we offer three technical service packages tailored to suit various operational needs.

Can your machine bend LED light frames?
Our machines are favoured by all the leading LED manufacturers. We can bend 1 and 3 piece housings for various styles. We can also supply complete cells including laser welding units and cabinets.
Can you bend T6 temper material?
Larger radii are OK, however, when bending nearer the limits, T4 is recommended.
