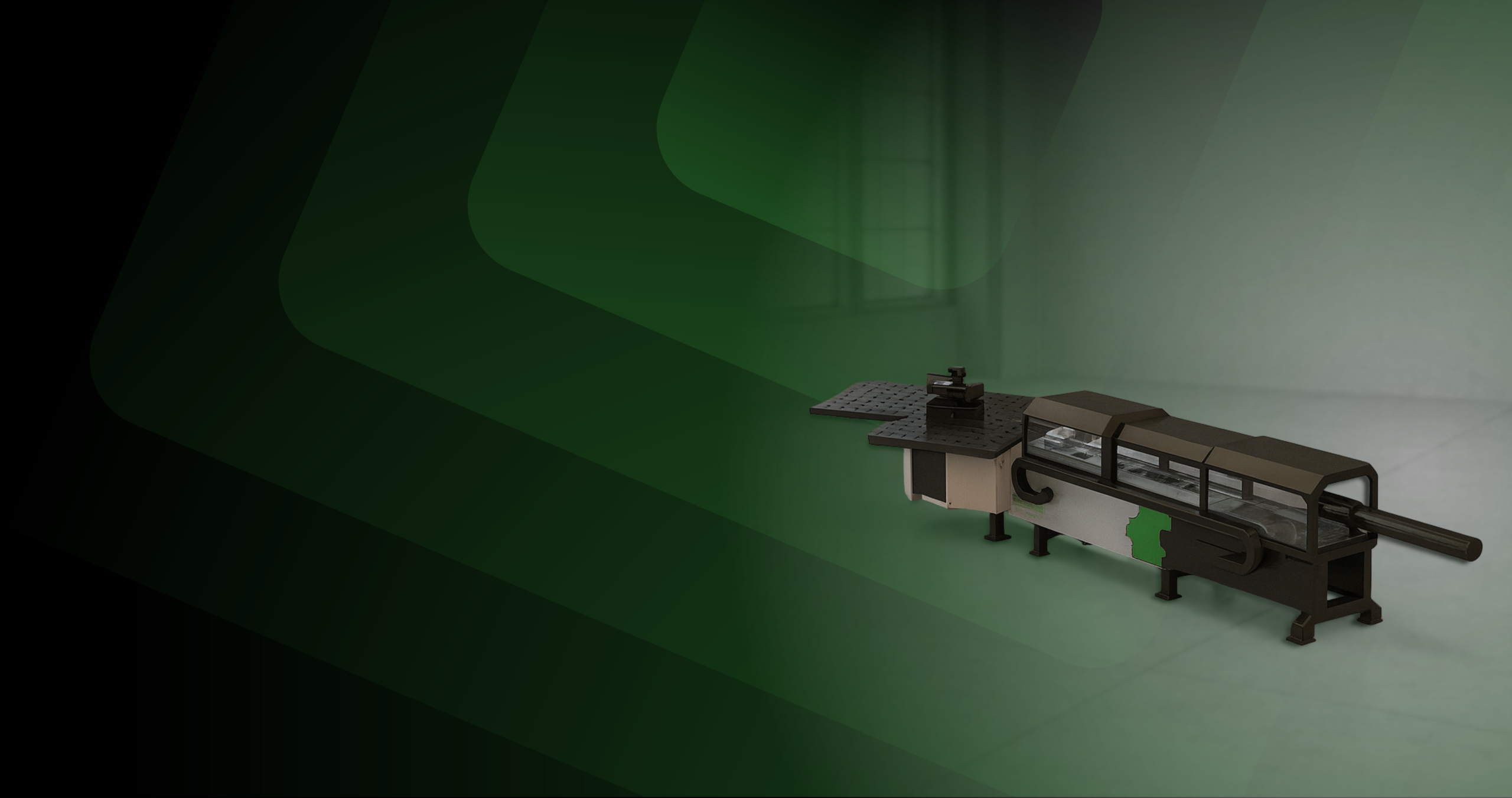

Rotary Table Bending
Machine
- Precision CNC rotary table for tight-tolerance profile bending
- Ideal for architectural facades, automotive components and structural elements
- Energy-efficient servo-electric drive
- User-friendly CNC interface for quick setup and opera
Rotary Table Bending Machine
- Best Possible and Unique bending and stretch forming for Structural Applications
- Lowest Tool Cost Compared to Other Machines
- Easy to Operate with Minimal Training
Specs
- Bending force X-axis: 15T
- Drive of twist axis: Hybrid, servo hydraulic, clean, low noise – 70% energy savings
- Bend length: 3000mm
- Maximum part width: 100 x 100
- Machine control: Siemens HMI, Inductaflex Control
- KW: 2.4kW
- Power supply connection: 3 x 400 / 480v, 50 / 60Hz
- Length / Width: 6000 x 3000mm
- Weight: 9000kg
- Transportability of the machine: 6000 x 3000mm
- Hydraulic oil volume: 60L
- Minimum radius: 2.5D to 50metres
Optional extras
- Multiple Clamping Devices: Ensuring Secure Handling of Profiles and Bending Materials
- Automated Tool Changing: Enabling Fast and Effortless Tool Swaps for Maximum Efficiency
Dimension
- Length / Width: 6000 x 3000mm
- Weight: 9000kg
Installation and commissioning
The machine should be connected to a 480V, 3-phase, 60Hz power supply via a 32A wall-mounted isolator. Additionally, a compressed air supply of 3 to 5 bar is required.
We highly recommend the machine installed and commissioned under consultancy and supervision of Inductaflex engineers. We offer installation & commissioning , maintenance service to secure specification and operation of machines.
Shipping
Warranty
The warranty period for goods is within 3 years from the date of BL/AWB for any broken, damages, defects be caused to the Goods by quality of Goods and for reason attributable to the Seller.
In case the Goods need to be repaired / replaced within the warranty period, the execution time shall be the minimum reasonable required time from the Buyer and Seller’s agreed date.
The Seller shall be relieved of its obligations under this Warranty to the extent that:
– The Buyer has modified the machines. The damage to the Goods has occurred during transit, or is due to improper storage, unloading, handling or operation by the Buyer
– The Buyer has failed to handle, install, operate and maintain the Goods strictly in accordance with the instruction manual of Seller.
– Wear and Tear parts are excluded from warranty.
In the case of a turnkey project, warranty will commence once the installation is completed.
EXCLUSIVE SERVICES WITH LIMITED OFFERS
MAINTENANCE
2. Spare parts supply
3. Performance optimization
TRAINING
2. Advanced Technical Training &
3. Video Training
TECHNICAL SUPPORTS
2. Spare guide for repairs and adjustment.
INSTALLATION & SET UP
2. On-site Supervision & Consultancy.
TOOLING DESIGN & SUPPLY
2. Tool Manufacturing.
TECHNICAL CONSULTATION
2. On-site machine customization and solutions for specific requirements.
EXAMPLE BENDS
Advanced Rotary Table Precision
CNC Control & Automation
Its intuitive CNC interface supports CAD import and automated programs, allowing operators to quickly set up complex bends. Built-in re-bend software automatically corrects any deviations, ensuring error-free profiles with minimal waste. Advanced servo control manages all roll and pinch axes for precise execution of each programmed curve.
Robust Construction & Torque
The RS-15 is built on a heavy-duty frame with high-torque rollers, capable of handling large steel angles and beams without flex. This sturdy construction prevents vibration during bending, ensuring smooth curves on even the heaviest structural sections. It reliably processes thick materials (angle iron, channels, I-beams) to exact radii for demanding industrial use.
Applications in Architecture & Automotive
Architectural Structural Profiles
Ideal for building construction, the RS-15 produces complex curves in architectural metalwork. It forms facades, balustrades, canopy supports and other decorative structural pieces to exact angles. Versatile bending software and rigid control ensure these elements meet design specifications and fit seamlessly on site.
Automotive Structural Bending
The RS-15 also serves automotive manufacturing by bending metal profiles for vehicles. It easily forms components such as bumper beams, door frames, chassis rails and trim channels. High torque and precision mean each automotive profile meets exact curvature specifications, supporting robust design and safety
Rotary bending machine range
| RS-15 | RS-25 | RS-35 | RS-50 | RS-75 | |
| Bending force (T) | 15 | 25 | 35 | 50 | 75 |
| Drive of twist axis | Hybrid, servo hydraulic, clean, low noise – 70% energy savings | Hybrid, servo hydraulic, clean, low noise – 70% energy savings | Hybrid, servo hydraulic, clean, low noise – 70% energy savings | Hybrid, servo hydraulic, clean, low noise – 70% energy savings | Hybrid, servo hydraulic, clean, low noise – 70% energy savings |
| Bend length (mm) | 3000 | 4000 | 4000 | 5000 | 6000 |
| Max part width (mm) | 100×100 | 120×120 | 150×150 | 200×200 | 300×300 |
| Machine control | Siemens HMI, Inductaflex Control | Siemens HMI, Inductaflex Control | Siemens HMI, Inductaflex Control | Intelligent CNC, reverse bending | Siemens HMI, Inductaflex Control |
| Power (kW) | 2.4 | 3 | 4.4 | 4.7 | 12.3 |
| Power supply | 3 x 400 / 480v, 50 / 60Hz | ||||
| L/W/H (mm) | 6000 x 3000 | 7000 x 3500 | 7000 x 3500 | 9000 x 4500 | 10000 x 5000 |
| Weight (kg) | 9000 | 12000 | 15000 | 25000 | 45000 |
| Transportability | Pallet truck | Pallet truck | Fork truck | Fork truck | Crane |
| Hydraulic oil volume (L) | 60 | 100 | 180 | 240 | 320 |
| Minimum radius | 2.5D to 50 metres | ||||
FAQs
Common Questions About ROTARY TABLE BENDING MACHINE Contact us with any questions that you may have, or review some of the commonly asked questions that our sales team receives below:
What materials can the RS-15 bend?
The RS-15 is designed to bend aluminum, steel, stainless steel, copper, and other common structural and architectural profiles.
What kind of tooling is required, and is it customizable?
Tooling is customizable per profile shape and application. Inductaflex provides bespoke tools for unique architectural or automotive needs.
How long does it take to set up and change tooling?
The system is designed for quick changeover, typically under 30 minutes for common profiles, depending on complexity.
Does the machine support bending profiles with variable radii?
Yes. The RS-15 includes variable center and programmable axis movement, enabling it to create compound curves and multiple radii in a single pass.
Is operator training required, and do you offer support?
Minimal training is needed due to the intuitive interface, and we offer comprehensive onboarding, manuals, and remote/onsite support.
Is the RS-15 compliant with US and international quality standards?
Yes. Inductaflex machines are manufactured under ISO 9001:2015 and meet CE/UL compliance for global use.
