Saw Cutting Curve Parts |
CNC Double-Head Sawing
-

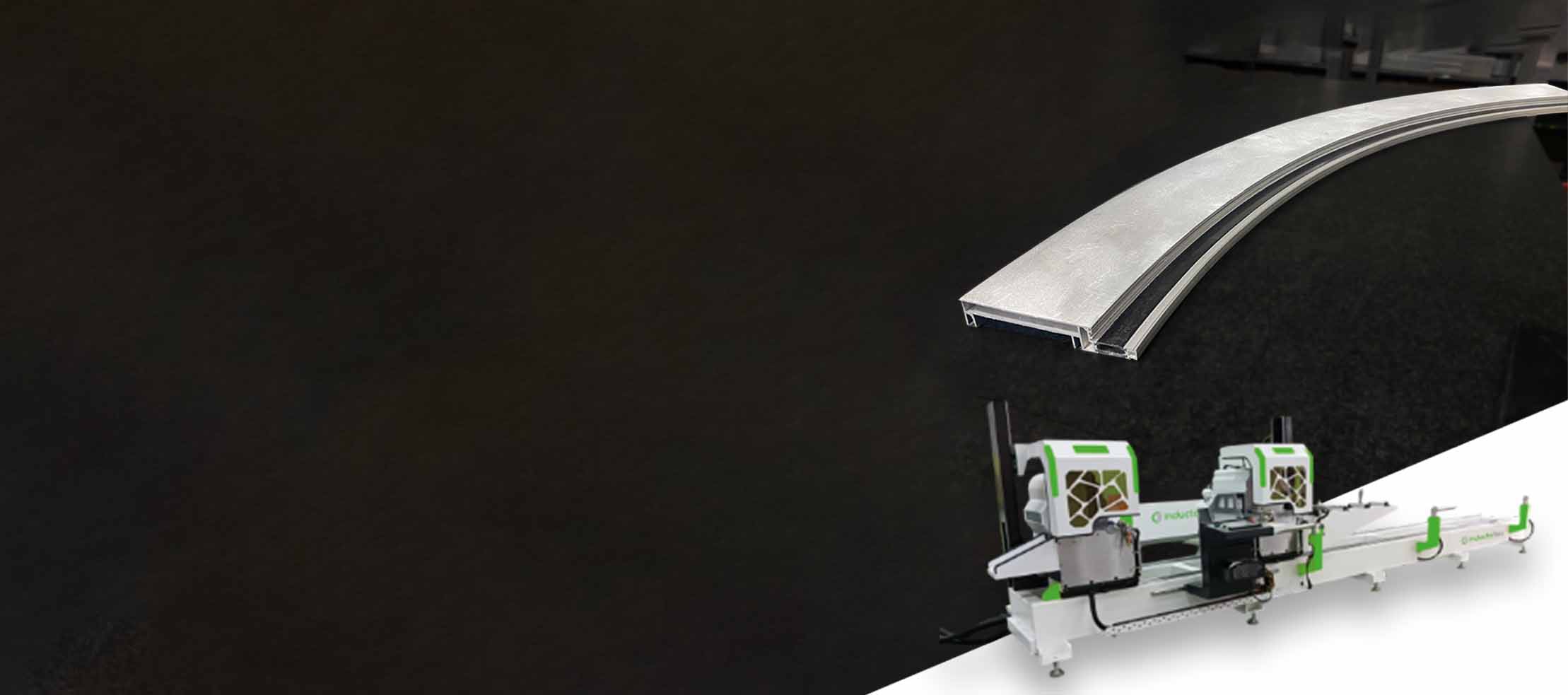

High-precision CNC double-head saw for aluminum and PVC profiles
-
Adjustable cutting angle from 43.5° to 157.5°
-
Continuous multi-length cutting with servo and touch-screen control
-
Smooth finish with minimal profile deformation
saw cutting curve parts
Specs
- Power Supply: 380V / 50Hz
- Main Motor: 2 × 3 kW (2840 rpm)
- Servo Motor: 3 × 1 kW
- Air Pressure: 0.6 – 0.8 MPa
- Air Consumption: 60 L/min
- Cutting Length: 360–5000 mm (at 90°)
- Cutting Width: Max 200 mm
- Cutting Height: Max 390 mm
- Cutting Angles: 43.5° (inner) – 157.5° (outer)
- Saw Blade: Ø600 × Ø30 × 4.4 mm × Z144
- Feed Speed: 0–3 m/min (stepless adjustment)
- Repeat Accuracy: ≤ 0.05 mm
- Cutting Tolerance: ± 3′
- Surface Roughness: Ra ≤ 12.5μm
- Machine Size (L×W×H): 6000 × 1500 × 1900 mm
Installation and commissioning
The machine should be connected to a 400, 420 or 480V, 3-phase, 50/ 60Hz power supply form a wall mounted or cable drop with an isolator.
Continuous compressed air supply of 3 to 5 bar is required for the encoder deployment. Some automation accessories require additional air supply, this will be noted on the shop drawing.
We highly recommend the machine installed and commissioned under consultancy and supervision of Inductaflex engineers. We offer turnkey installation & commissioning, maintenance service to secure specification and operation of machine
Shipping
We are willing to handle the shipment in accordance with the requested term under Incoterms 2020
Warranty
The warranty period for goods is within 3 years from the date of BL/AWB for any broken, damages, defects be caused to the Goods by quality of Goods and for reason attributable to the Seller.
In case the Goods need to be repaired / replaced within the warranty period, the execution time shall be the minimum reasonable required time from the Buyer and Seller’s agreed date.
The Seller shall be relieved of its obligations under this Warranty to the extent that:
– The Buyer has modified the machines. The damage to the Goods has occurred during transit, or is due to improper storage, unloading, handling or operation by the Buyer
– The Buyer has failed to handle, install, operate and maintain the Goods strictly in accordance with the instruction manual of Seller.
– Wear and Tear parts are excluded from warranty.
In the case of a turnkey project, warranty will commence once the installation is completed.
Precision Saw Cutting for Curved Aluminum and PVC Profiles
Our CNC double-head saw machine is purpose-built for industries that demand accurate, smooth cuts on complex curved or angled aluminum profiles. Perfect for curtain wall systems, doors, windows, and architectural aluminum applications.
Seamless Angle Adjustments
Cut profiles at any required angle between 43.5° and 157.5° with servo-driven precision. Ideal for non-standard architectural geometries.
Consistent, Smooth Finishes
Diamond-tipped saw blades and gas-liquid feed systems ensure clean surfaces and high accuracy without profile deformation.
EXCLUSIVE SERVICES WITH LIMITED OFFERS
MAINTENANCE
2. Spare parts supply
3. Performance optimization
TRAINING
2. Advanced Technical Training &
3. Video Training
TECHNICAL SUPPORTS
2. Spare guide for repairs and adjustment.
INSTALLATION & SET UP
2. On-site Supervision & Consultancy.
TOOLING DESIGN & SUPPLY
2. Tool Manufacturing.
TECHNICAL CONSULTATION
2. On-site machine customization and solutions for specific requirements.
EXAMPLE BENDS
Intelligent Control for Maximum Efficiency
Touch-Screen Interface with CAD Input
Easily input custom lengths or import profile dimensions directly for immediate, accurate processing.
Multi-Length Cutting Without Reset
Save time with smart sequencing that doesn’t require returning to the origin between cuts, reducing cycle time and increasing productivity.
Reliable for Industrial and Architectural Use
Fully Automated, Low-Maintenance Operation
Fewer moving parts, a fully enclosed saw cover, and minimal operator input make this machine easy to run and maintain.
Certified Quality and Safety
Built to meet ISO9001 and CE standards, with options for UL/CSA conformity on request.
FAQs
Common Questions About the Saw Cutting Curve Parts. Contact us with any questions that you may have, or review some of the commonly asked questions that our sales team receives below:
What materials can this saw machine cut?
The machine is designed to cut aluminum, PVC, and wooden profiles. It’s ideal for curtain wall extrusions, door and window frames, and other architectural components.
What is the cutting angle range?
It supports any angle between 43.5° and 157.5°, offering high flexibility for non-standard architectural and structural profiles.
Can the machine handle curved parts?
Yes. It is specifically designed for precision angle cutting of curved or complex-shaped profiles, making it ideal for façade and structural applications.
What is the maximum cutting length?
It can cut profiles from 360 mm to 5000 mm at 90°, with different configurations depending on the model.
How accurate is the machine?
The repeat fixed length accuracy is ≤ 0.05mm, and the cutting angle tolerance is ±3′, ensuring precise, clean cuts every time.
What kind of blades does it use?
The machine uses high-precision diamond saw blades (ø600 mm), ensuring smooth finishes with minimal burrs or deformation.
Is it suitable for high-volume or batch production?
Yes. The machine supports multi-length input and automatic sequencing for continuous cutting, making it ideal for mass production
What software and control system does the machine use?
It includes an imported CNC control system with an intuitive touch-screen interface, allowing size input, profile optimization, and CAD file upload.
Is it easy to change cutting lengths during operation?
Yes. Users can input or change profile lengths directly, without returning to the reference point, saving time during job changes.
Does the machine support safe and clean operations?
Yes. It includes a sealed saw blade area, chip removal system, and automatic saw cover for a safer and cleaner work environment.
How many clamping systems are used?
Each saw head includes two pneumatic cylinders, ensuring strong and stable profile clamping during cutting.
What power and air supply are required?
The machine requires 380V / 50Hz power and 0.6–0.8 MPa working pressure. Air consumption is approximately 60L/min.
Get a Technical Datasheet
Contact Us to discuss part requirements, lead time, and ROI analysis for your program.
